Qraypen C, W-Block
Assessment, Class 2 medical device

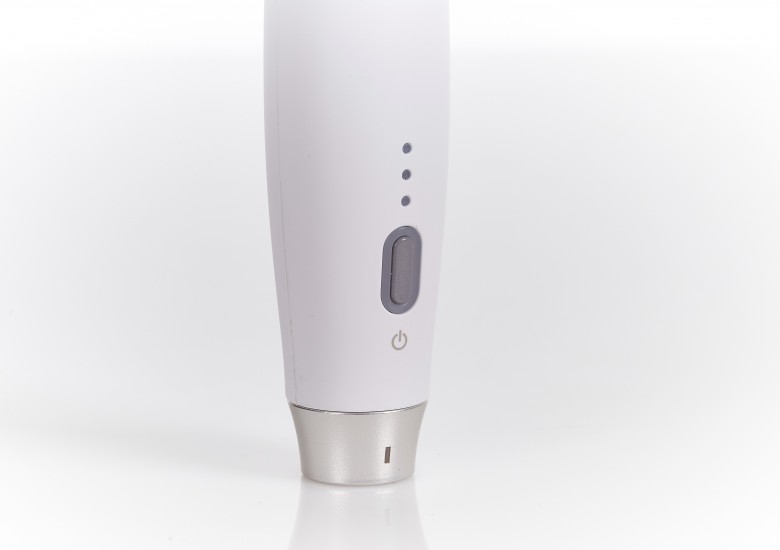

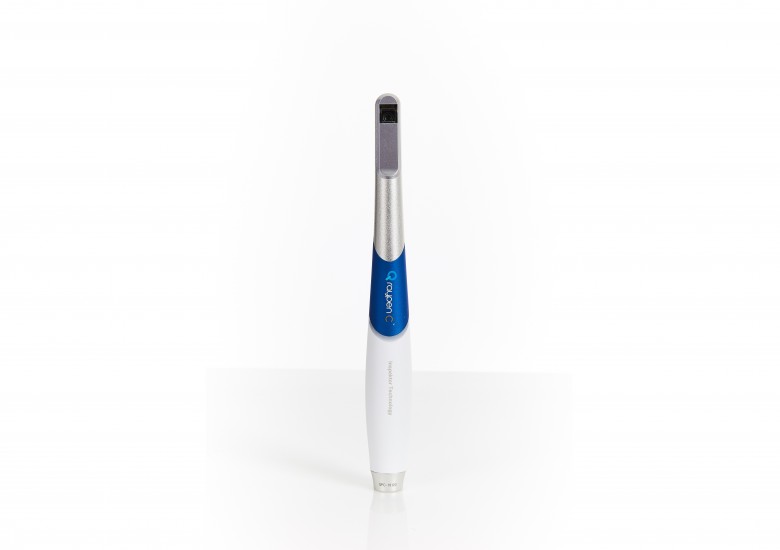

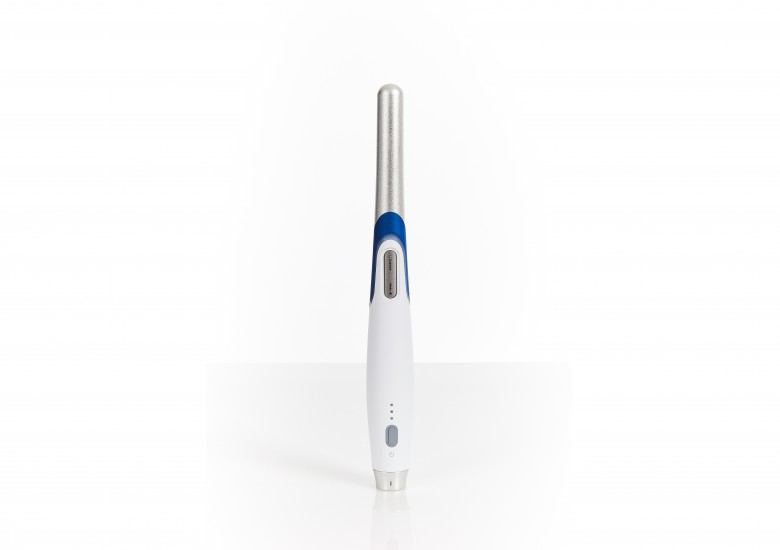

Qraypen C is an upgraded version of the existing Qraypen. The existing Qraypen was a first-class medical device, but Qraypen C is a second-class optical device that enables clinical diagnosis of dental caries with more technological advancement. Especially specialized for clinical diagnosis, it is suitable for imaging individual teeth and approximal surfaces. Qraypen C is also convenient to use, for it can shoot both general images and Qray images at the same time.
- Assessment of individual tooth condition
- Certified as a class 2 medical device that can be used in diagnosis of dental disease

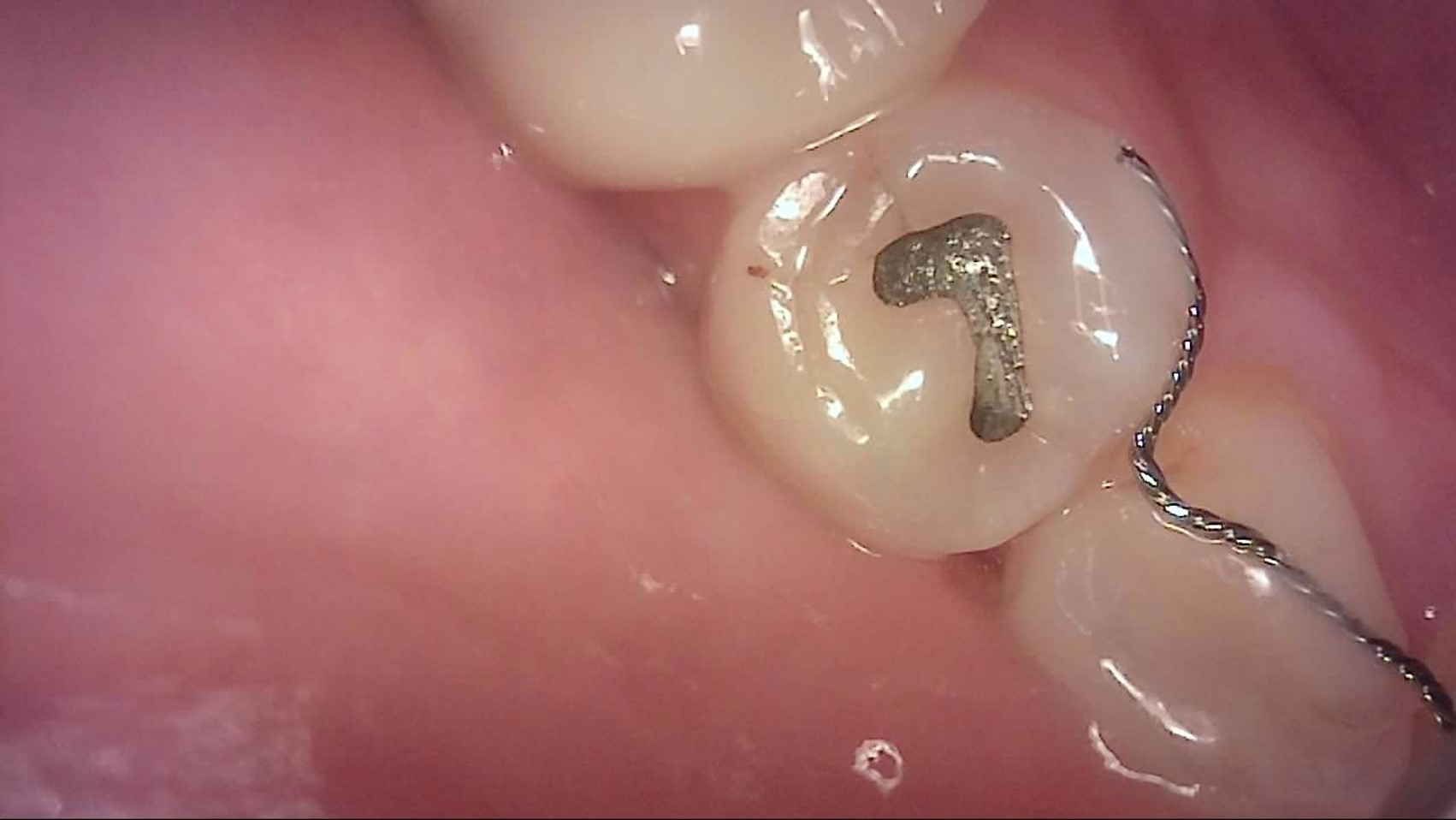

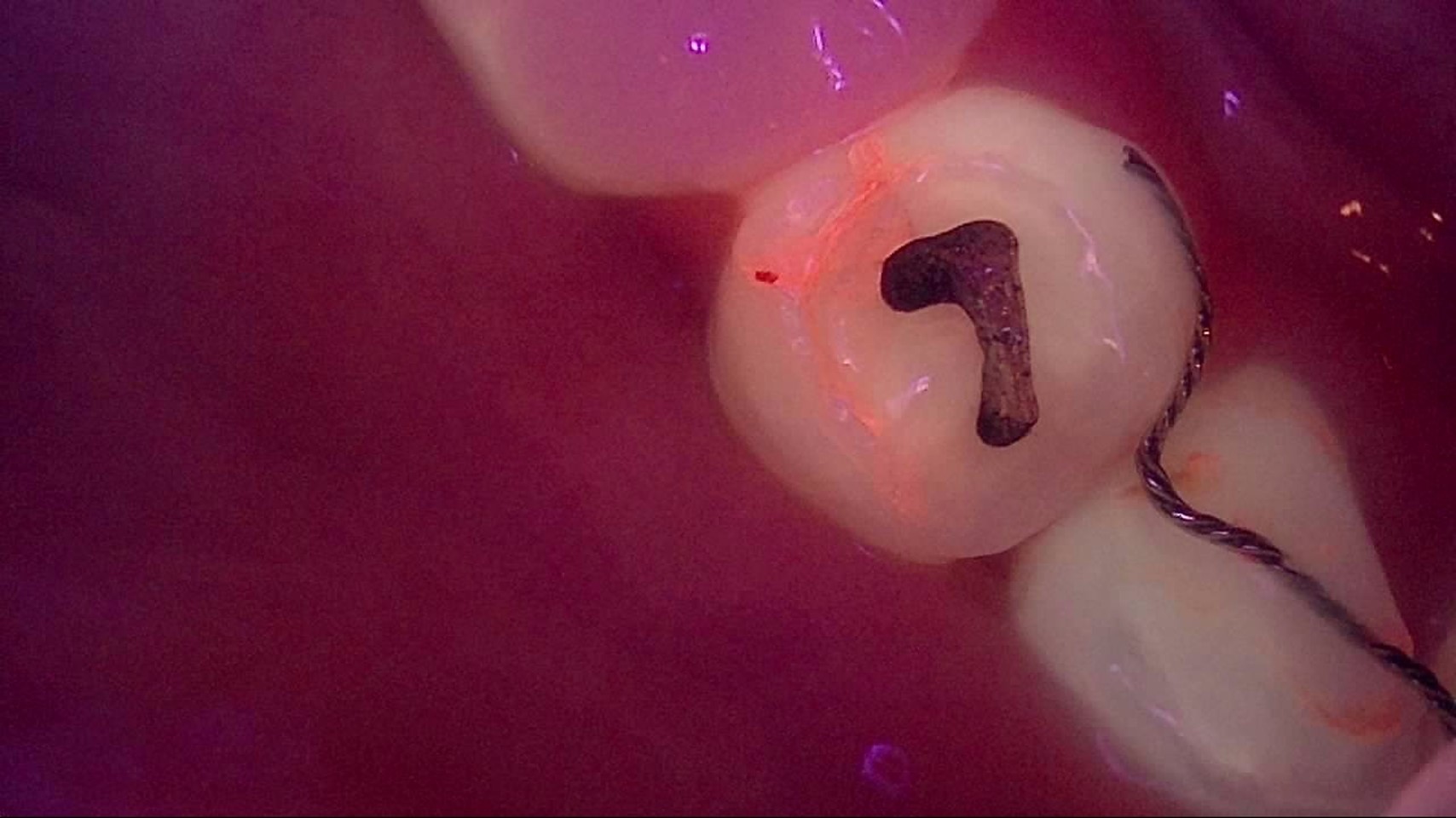

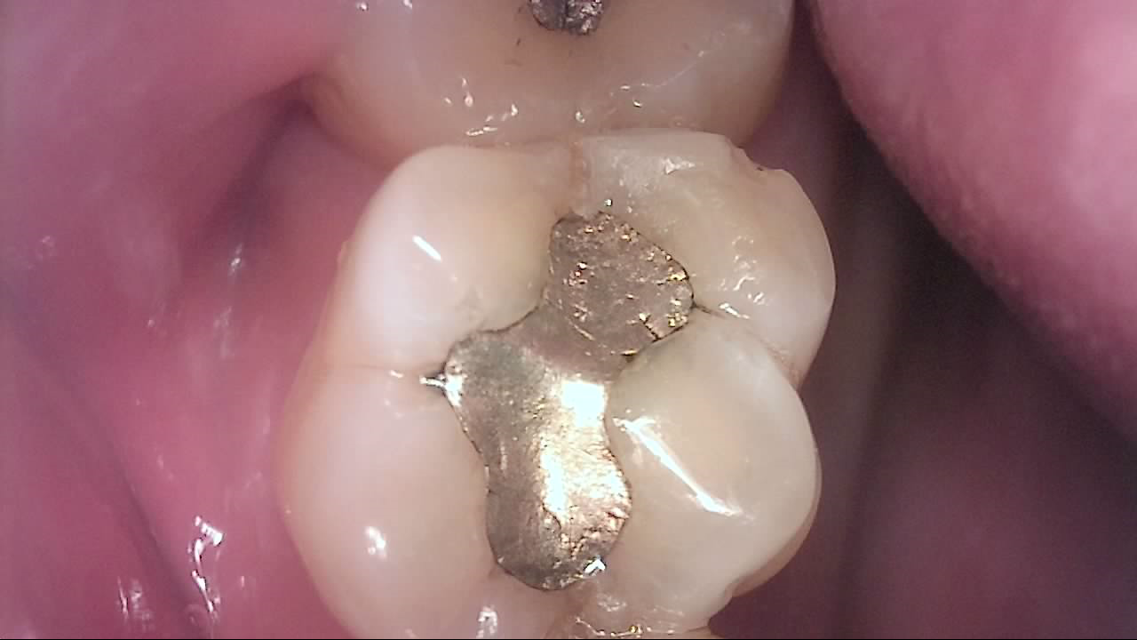

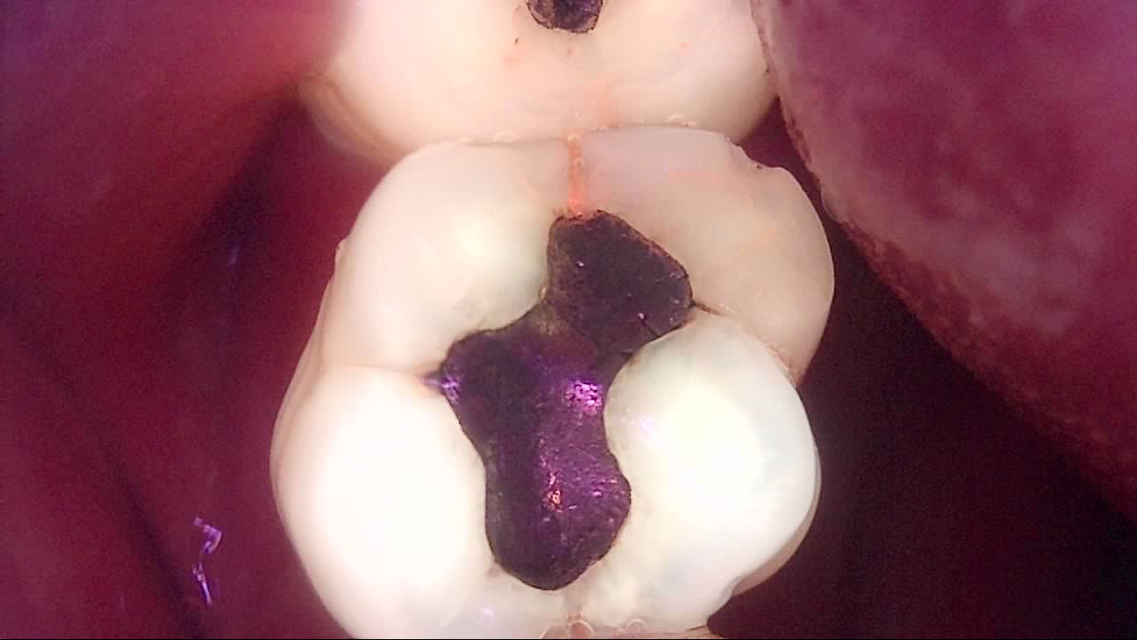

- Both general images and Qray images can be shot at the same time
- Compatible with electronic charts and insurance claims programs

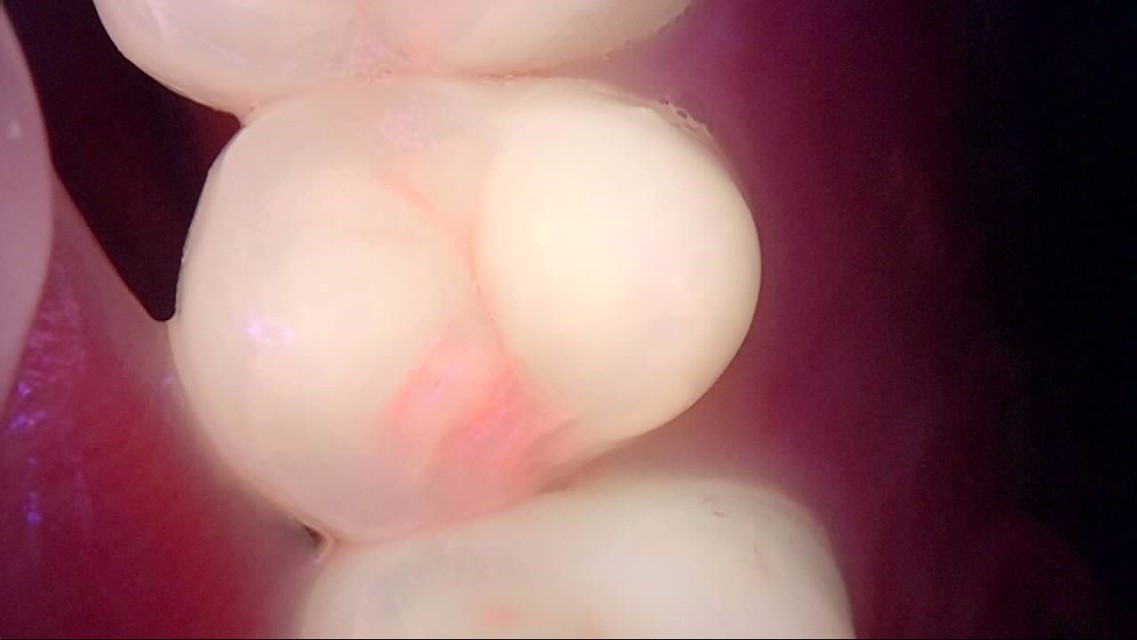

- Proximal caries
- Crack
- All-in-one LED mode can be changed without detaching the head
- Convenient use with “Auto Focus” function

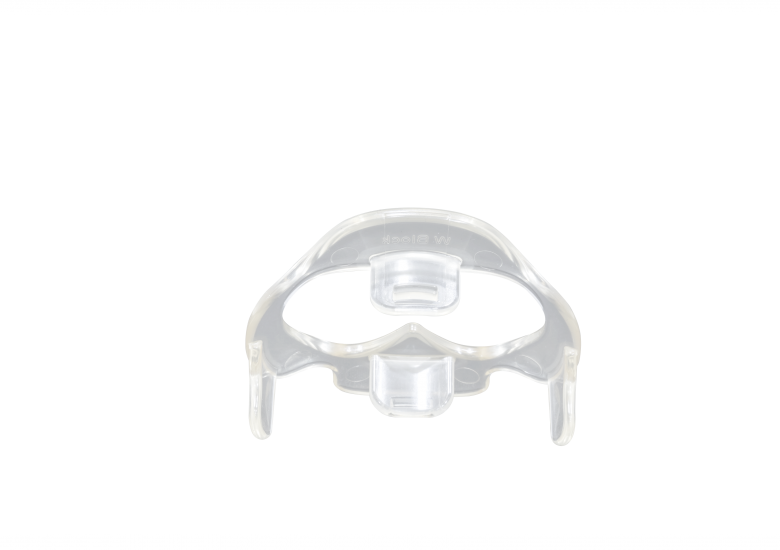

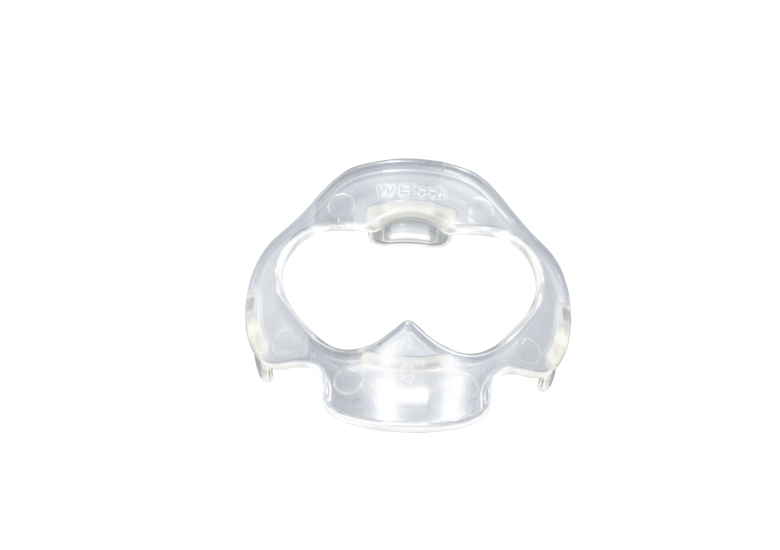

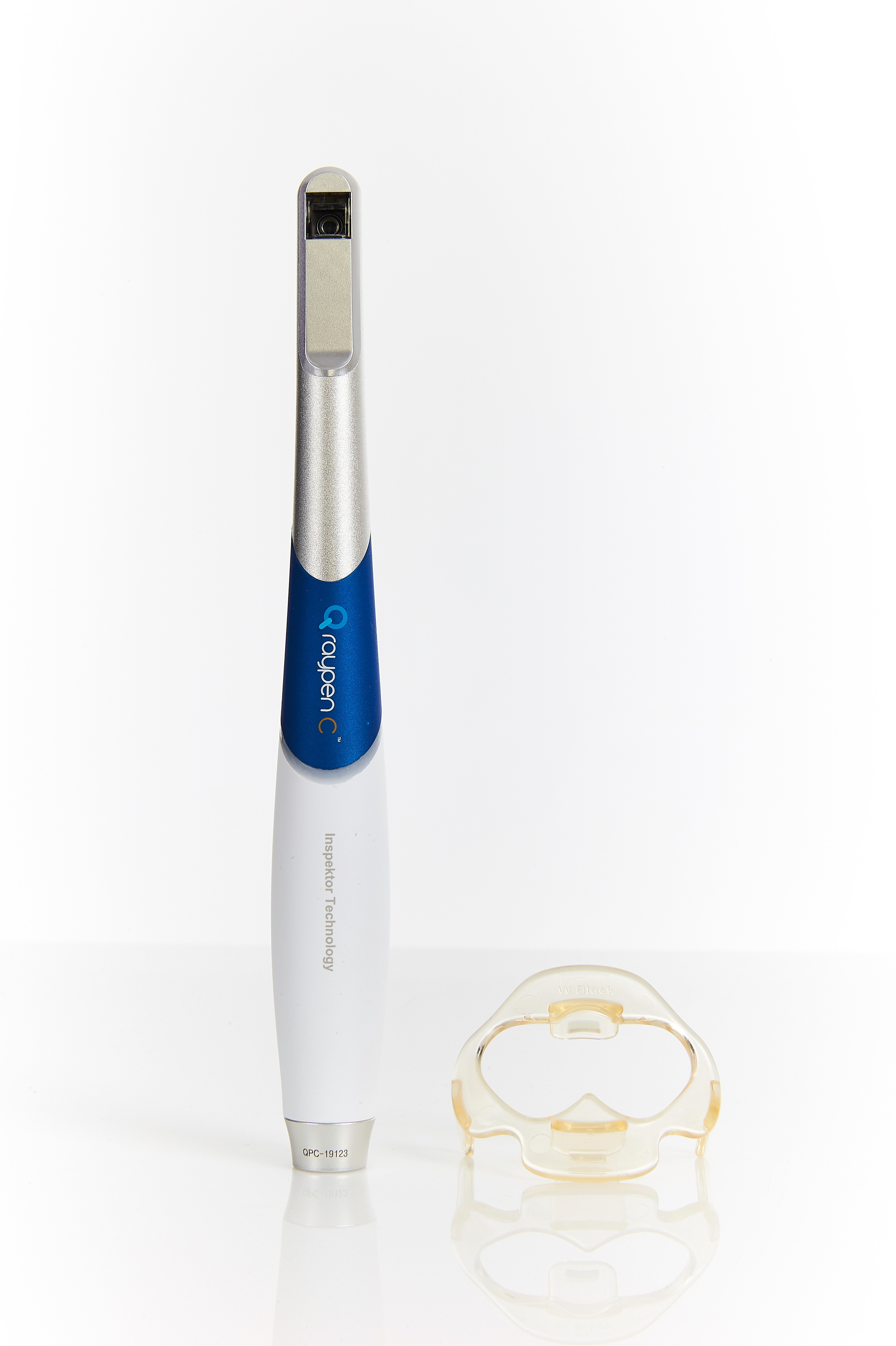

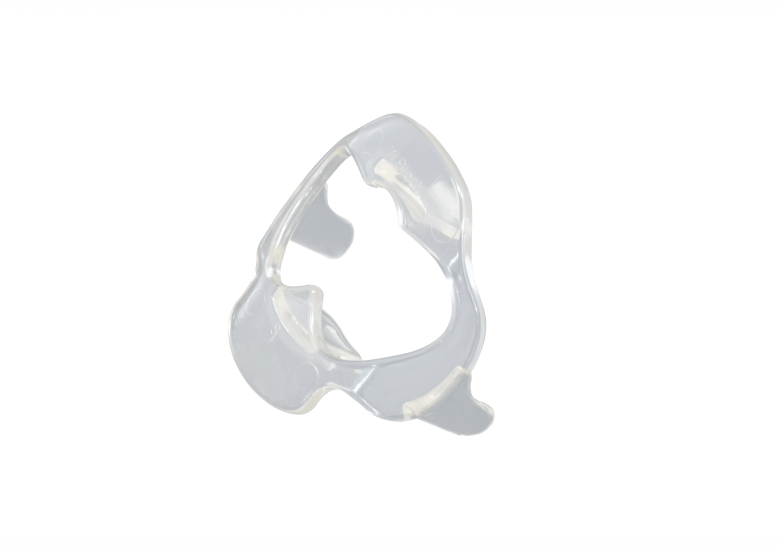

Qraypen C is used with W-block to fix the position of the oral camera.
Product composition
- Main body 1 EA
- Vinyl cover 1Box
- 5m Cable (White) 1EA
- Adapter (5V1A) 1EA
- Cable stand 1EA

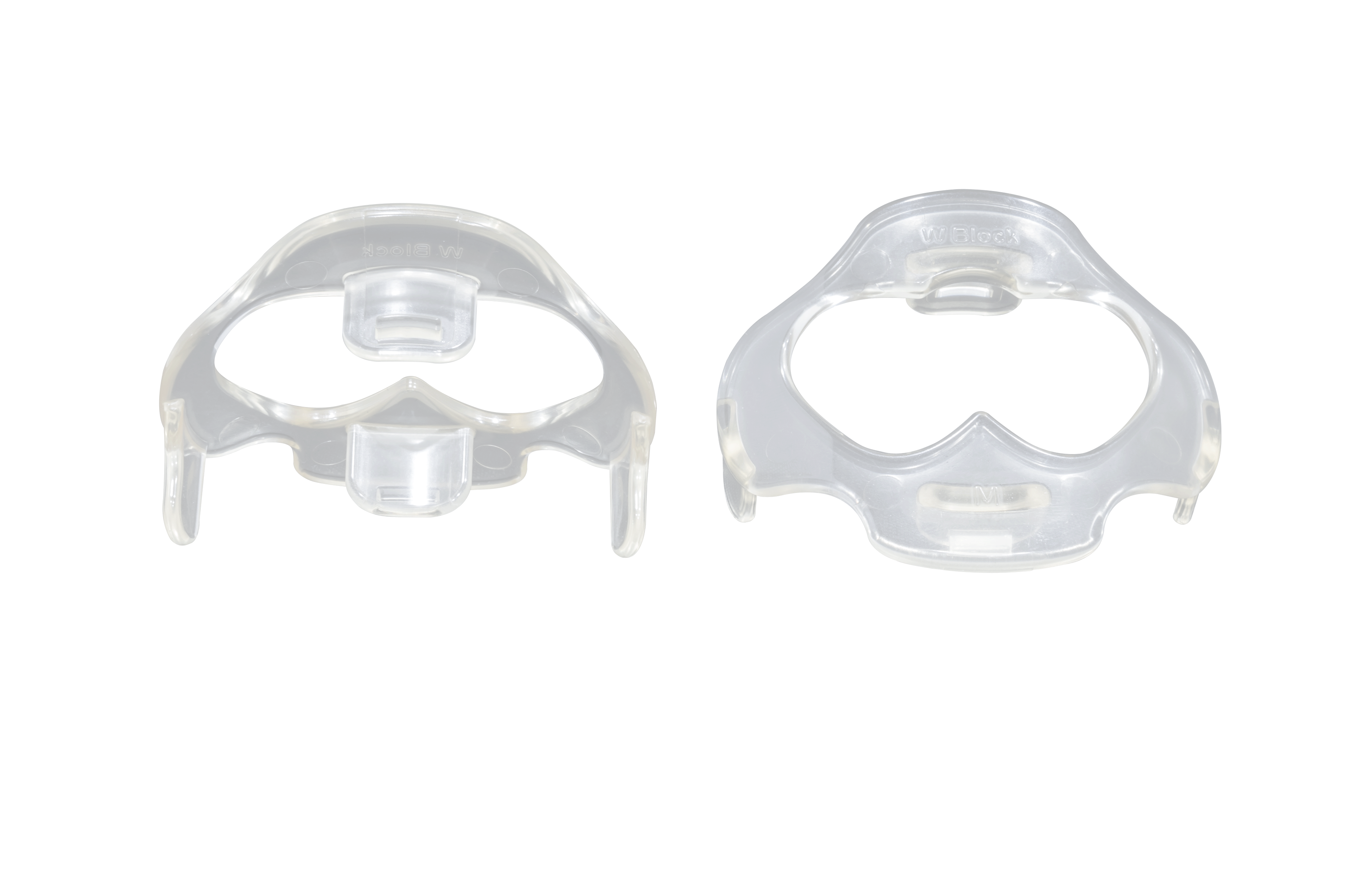

- W-block (small) 1EA
- W-block (Medium) 1EA
- Product manual 1EA
Tips
- Possible to manage infection by using private sanitary plastic cover.
This product is a "medical device", please read and use "Precautions" and "How to use".
System Recommendations
| OS | Windows 7 Professional with SP1 or more |
| CPU | DualCore 1.5Hz or higher |
| RAM | 1GB or moe |
| Resolution |
1280X720 or higher |
| Others | USB 2.0 Interface |
| Internet connection available |
Product specification

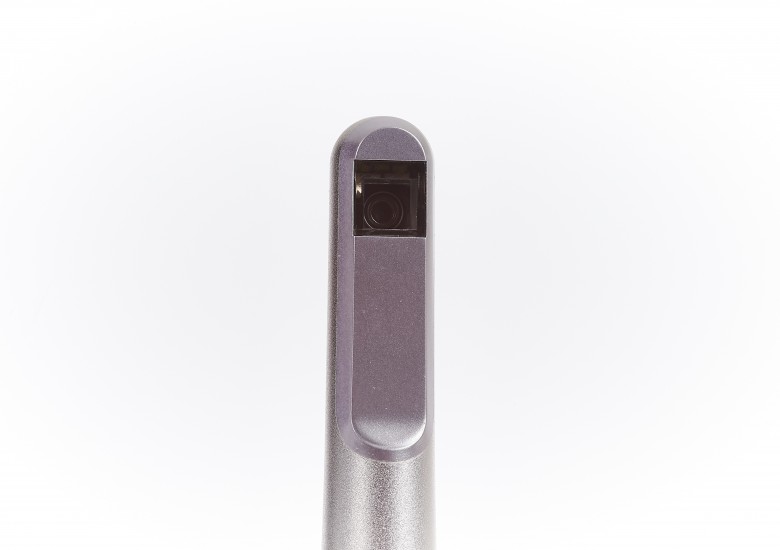

| Image sensor | HD720p C Image sensor MOS Video image sen | ||
|
Output resolution & Image transfer rate |
MJPG 1280 x 720 : 30fps(Default) | ||
| YUY2 1280 x 720 : 9fps | |||
|
|
Type | Variable focus Liquid LENS | |
| Focus | Trigger AF | ||
|
Focus Range |
Intra-oral | 5mm ~ 45mm (± 10%) | |
| Extra | 17mm ~ 123mm (± 20%) | ||
| FOV |
Diagonal | 64.00 Degree (± 3%) | |
| Horizontal | 53.05 Degree (± 3%) | ||
| Vertical | 41.14 Degree (± 3%) | ||

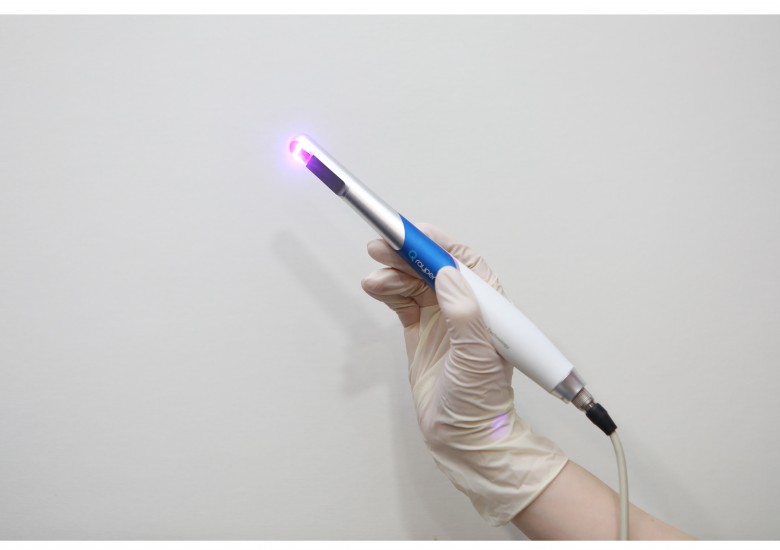

| LED |
WHITE | 7ea White chip LED | |
| UV | 2ea UV chip LED | ||

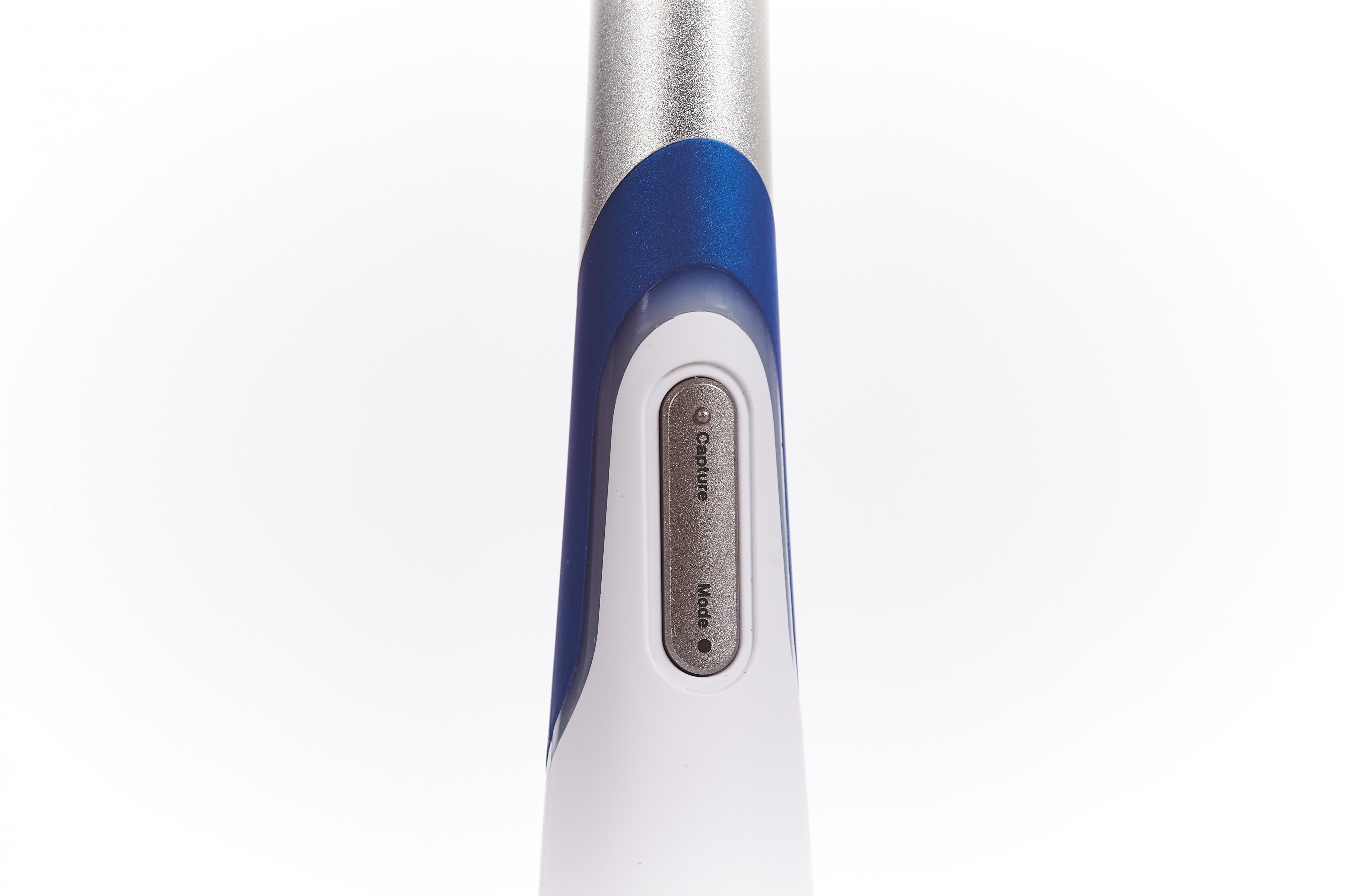

| Capture System | Hand-piece button capture | ||
| Device Connector | One touch full-metal connector | ||
| Interface | PC USB 2.0 | ||
| Input power |
AC/DC Adaptor: 400mA, 100-240Vac, 50-60Hz * Manufacturer: FUHUA ELECTRONIC CO., LTD. * Model: UE15WCP-050200SPA Main Unit: 0.5A, 5Vdc |
||
|
Classification (According to Clause 6 of IEC 60601-1:2012) |
Class II Type B applied part Non-continuous operation: 50s activation (on) time/1 min deactivation (off) time |
||
| Essential Performance |
Auto focus (Acquisition Image of oral cavity) |
||
- For detailed information or purchase of the product, please contact aiobio@aiobio.co.kr
